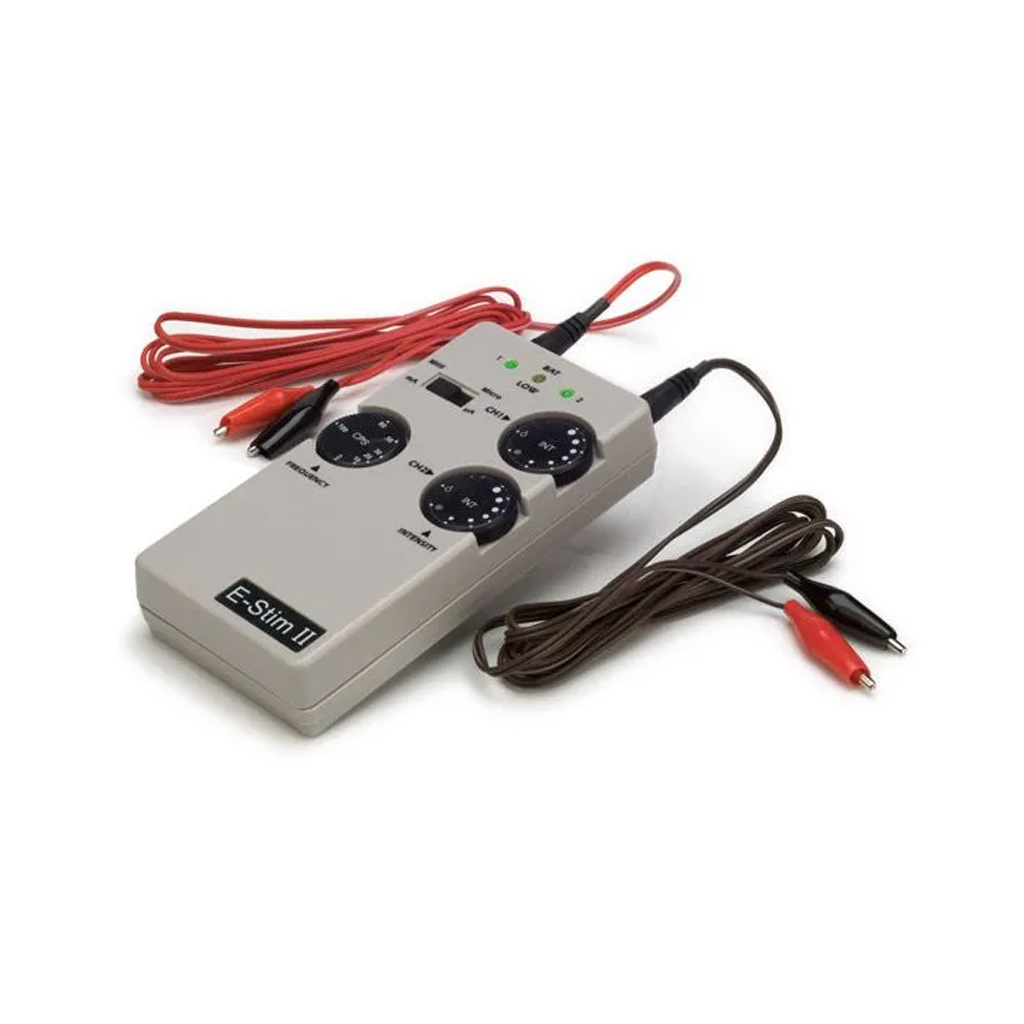

The E-Stim 2 features two independently controlled channels capable of an output up to 40mA. But what you’ll really like about this device is its ability to control and treat with microcurrents. When Micro-amps is selected, the intensity dials adjust the output between 0-2mA. This level of sensitivity is important for those wishing in influence cellular health using microcurrents.
Wave length is fixed and continuous with adjustable frequency between 1-100 Hz. Green LEDs indicate when the channels is active and Hz selection. A single Yellow LED will let you know when the battery is getting low.
Pocket sized and aesthetically pleasing this would suit practitioners interested in the use of microcurrents or those who want a simple unit ready to use unit.
Specifications:
Channels
2
Intensity
0-40 mA (milliamp)
Frequency
2 -100 Hz
Waves
Continuous
Additional Functions
Micro Amp adjustability 0 – 2000 µA (2 mA)
Timer
-
500 ohm test load Output channels 2 independent intensity channels
Frequency: 1 to 100 Hz, flashing LED Milli-amp setting Volts & current: 0 to 40 mA, 0 to 20 volts Micro-current setting Volts & current: 0 to 2,000 microA (2 mA), 0 to 1 volts
Pulse width: 280 microseconds Pulse shape: asymmetric biphasic square Pulse modes: continuous Power indication: flashing LED, each channel Power source: one 9 volt battery Low power indication: yellow LED light
