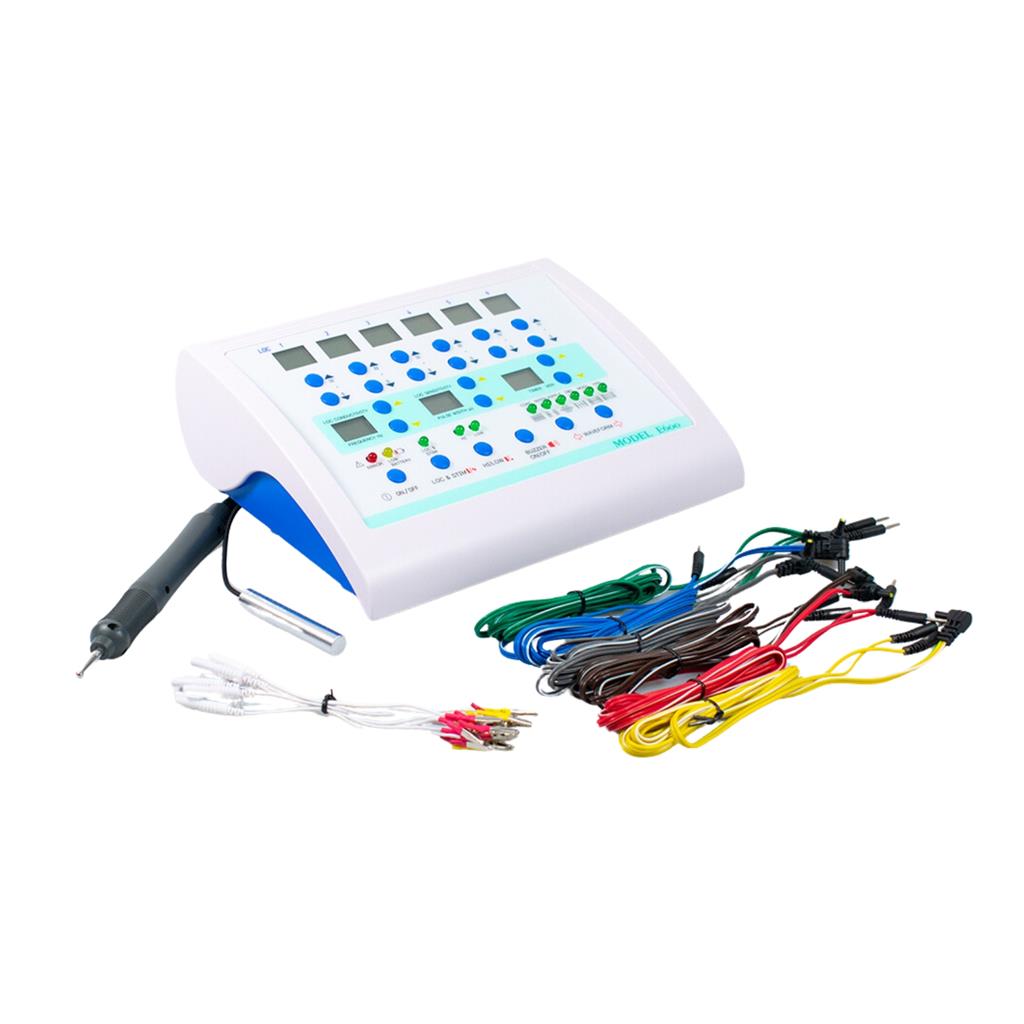

Model E600 Stimulator
Item No.
STAP0004
The top tier E600 all-digital display multi-function acupuncture instrument is one of the most featured and advanced electrotherapy device on the market! Highlighted with assorted accessories, and delivering six different waveforms. With 6 channels you can stimulate up to 12 acupuncture points at
Read full description
Description
The top tier E600 all-digital display multi-function acupuncture instrument is one of the most featured and advanced electrotherapy device on the market! Highlighted with assorted accessories, and delivering six different waveforms.
With 6 channels you can stimulate up to 12 acupuncture points at the same time. The intensity is controlled by push buttons rather than dials allowing for comfortable and predictable adjustment increments, no more sudden jolts for patients. Channels have a maximum out-put of 40 mA.
The E600 comes with 6 pre-set wave forms including ‘Han’ mode which works by stimulating low and high frequency simultaneously, maximizing analgesic effect. Additional wave forms include continuous, intermittent, ripple, dense & disperse, and modulate.
The unit also comes with a special pen probe used for measuring electrical resistance on skin and locating acupuncture points. The probe can also be used to deliver direct stimulation up to 64 mA to an acupuncture point.
For a look at the manual and a full list of specifications please contact our friendly staff.
| Channels | 6 |
| Intensity | 0-40 mA (milliamp) |
| Frequency | 0.5 Hz, 0.7 Hz, 1–500 Hz |
| Waves | (6) Continuous, Intermittent, Ripple, Dense & disperse, Modulate, HAN mode |
| Attachment | Point detector and stimulator (0-64 mA) |
| Timer | Yes |
Specifications:
- Output channels: 6 outputs
- Volts & current: Low 0-5 volt, 0-10 mA (milliamp) (500 Ω load) High 0-20 volt, 0-40 mA (milliamp) (500 Ω load)
- Stim Mode: 0-32 volt, 0-64 mA (milliamp) (at 500 Ω load)
- Pulse shape: Symmetric waveform Asymmetric waveform for HAN mode
- Pulse Width: 50 to 400 μS, adjustable
- Pulse Rate: 0.5, 0.7, 1 - 500 Hz adjustable
- Output modes: Continuous, Intermittent, Ripple, Dense & disperse, Modulate, HAN mode
- Timer: 1 to 60 minutes and Continuous
- LOC: Skin impedance monitoring LOC Conductivity : 0 - 200 LOC Sensitivity setting 3 levels: L5, L10, L20 with Sound On/Off function
- The Error LED will illuminate when output intensities are not set to “0” during the change of a waveform, when HI/LOW output is toggled Or LOC/STIM mode is toggled. When the ERROR LED illuminates, All intensities will be reset to “0”. Pressing any key will turn the ERROR LED and buzzer off and return the device to normal operation.
- Low Battery LED: When the battery voltage drops to under 7 volts, this LED will illuminate indicating that new batteries need to be installed.
Buzzer ON/OFF button: Turns the buzzer sound ON or OFF
Power Source: 6 standard 1.5 volt C size batteries
Device Dimensions: 240 x 185 x 70 mm (9.5" x 7.3" x2.7")
Weight: 870 g (not including battery)
Multi-Function includes:
1. Specially designed Acu-Point Electro-stim Therapy Pen, which can be used as direct stimulation right after the point detection.
2. Acupuncture needles or conductive glue can be used for electrotherapy.
3. There are 6 different waveforms, including HAN waveform
Accessories Included:
LOC/STIM Probe 1 pc. Connecting wire (assorted colors) 6 pcs. Connecting wire adapter 6 pcs. Battery 6 pcs. Instruction Manual 1 pc
Suitable for use with:
Pin Lead Wire for E600 (Round Type) STLE0017
Pin Lead Wire for SDZ STLE0011
E-STIM 3 Lead Wire red, Blue, Yellow, Brown
Specifications
| Name | Model E600 Stimulator |
