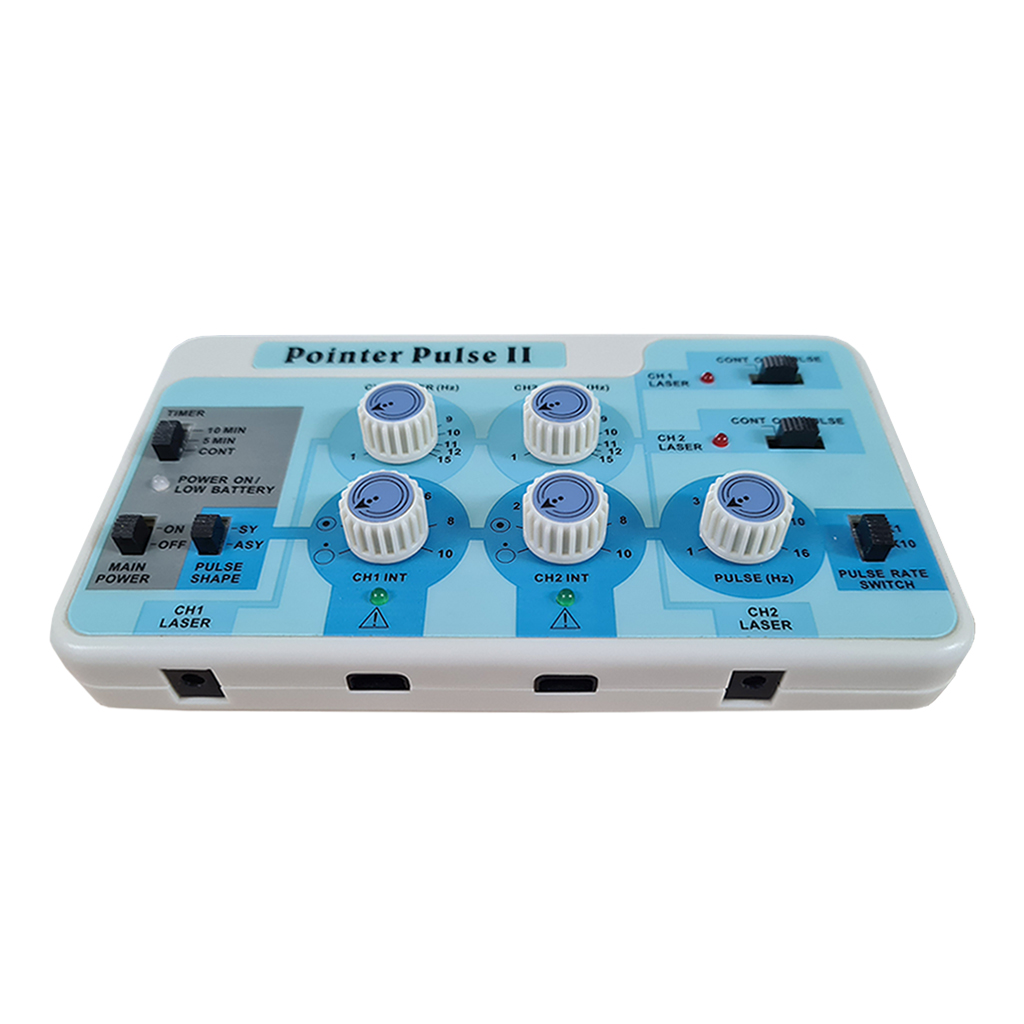

Pointer Pulse II - Dual Probe
Item No.
LAPO0002
Dual probe and dual-mode laser device (continuous and 5 Hz pulsed adjustable), with T.E.N.S. Feature. Battery Operated, portable and convenient to use everywhere. The device can also be used with an 9V DC adaptor. With the use of laser and/or T.E.N.S. acupuncture becomes a painless process, readily
Read full description
Description
Dual probe and dual-mode laser device (continuous and 5 Hz pulsed adjustable), with T.E.N.S. Feature.
Battery Operated, portable and convenient to use everywhere. The device can also be used with an 9V DC adaptor.
With the use of laser and/or T.E.N.S. acupuncture becomes a painless process, readily acceptable to everyone both young and old.The Pointer Pulse II is a device which provides a combination two outputs of Laser and Electrical stimulation.
Laser and Transcutaneous Electrical Nerve Stimulation (TENS) devices are used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain problems.Laser therapy is also used as a substitute to invasive acupuncture treatment, involving directly irradiating key acupuncture points on the surface of the skin. Laser therapy can also be used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain Problems.
Features:
Dual output channels - both with a combination of laser as well as electrical stimulation.
T.E.N.S. Stimulation
Laser stimulation
Continuous Or 1 - 15 Hz pulsed laser stimulation adds the effectiveness of therapy to certain diseases.
Auriculo-acupuncture
Body acupuncture
Dental and sports medication
Advantages:
Painless and without sensation of numbness
Harmless, no tissue damage
Complete sterility, no-cross infection
No heat, no adverse effect
User-friendly design and operation
Specifications:
Channel : 2 Channels
Output Current : 0-80 ma
Pulse Rate : x1 (1 - 16 Hz)
x10 (20 -160 Hz)
Pulse Width : x1 (260 £gS)
: x1 (260 £gS)
Pulse Shapes : Asymmetric Modified, Rectangular
Laser Pulse : Continuous, Or 1-15 Hz, Adjustable
Laser Wavelength : 650 nm
Max Power Output : <5 mw
Timer : Cont, 5 Min, 10 Min
Power Source : Alkaline Battery LR 6 or DC 9V Adaptor
Dc Power Jack : 6.3mm x 2mm Centre Pin
Dimensions : 160 x 88 x 50mm
Weight : 230 g
Output Parameters Are Across A 500 Ohm Resistance
WHY CHOOSE 650 nm WAVELENGTH VISIBLE LASER?
Laser beams within this range pass through water and hemoglobin, and penetrates deeply into the body without destroying the tissues. The visibility of laser beam enables the user to make sure it is applied to the appropriate treatment point.
WHY USE PULSED LASER OF 1 to 15 Hz?
Based on the manufacturers past experience, they have discovered that therapeutic effects can be enhanced in the Pointer Pulse II by allowing for a pulsation between 1- 15 Hz.
Suitable for use with:
Pin Lead Wire for AWQ105 STLE0013 (with extension TENS Pad STAC0028)
Battery Operated, portable and convenient to use everywhere. The device can also be used with an 9V DC adaptor.
With the use of laser and/or T.E.N.S. acupuncture becomes a painless process, readily acceptable to everyone both young and old.The Pointer Pulse II is a device which provides a combination two outputs of Laser and Electrical stimulation.
Laser and Transcutaneous Electrical Nerve Stimulation (TENS) devices are used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain problems.Laser therapy is also used as a substitute to invasive acupuncture treatment, involving directly irradiating key acupuncture points on the surface of the skin. Laser therapy can also be used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain Problems.
Features:
Dual output channels - both with a combination of laser as well as electrical stimulation.
T.E.N.S. Stimulation
Laser stimulation
Continuous Or 1 - 15 Hz pulsed laser stimulation adds the effectiveness of therapy to certain diseases.
Auriculo-acupuncture
Body acupuncture
Dental and sports medication
Advantages:
Painless and without sensation of numbness
Harmless, no tissue damage
Complete sterility, no-cross infection
No heat, no adverse effect
User-friendly design and operation
Specifications:
Channel : 2 Channels
Output Current : 0-80 ma
Pulse Rate : x1 (1 - 16 Hz)
x10 (20 -160 Hz)
Pulse Width : x1 (260 £gS)
: x1 (260 £gS)
Pulse Shapes : Asymmetric Modified, Rectangular
Laser Pulse : Continuous, Or 1-15 Hz, Adjustable
Laser Wavelength : 650 nm
Max Power Output : <5 mw
Timer : Cont, 5 Min, 10 Min
Power Source : Alkaline Battery LR 6 or DC 9V Adaptor
Dc Power Jack : 6.3mm x 2mm Centre Pin
Dimensions : 160 x 88 x 50mm
Weight : 230 g
Output Parameters Are Across A 500 Ohm Resistance
WHY CHOOSE 650 nm WAVELENGTH VISIBLE LASER?
Laser beams within this range pass through water and hemoglobin, and penetrates deeply into the body without destroying the tissues. The visibility of laser beam enables the user to make sure it is applied to the appropriate treatment point.
WHY USE PULSED LASER OF 1 to 15 Hz?
Based on the manufacturers past experience, they have discovered that therapeutic effects can be enhanced in the Pointer Pulse II by allowing for a pulsation between 1- 15 Hz.
Suitable for use with:
Pin Lead Wire for AWQ105 STLE0013 (with extension TENS Pad STAC0028)
Specifications
| Name | Pointer Pulse II - Dual Probe |
| Additional description | Laser & electro point stimulator |
